Oneup Components ISCG05 Underbash Guard

Oneup Components ISCG05 Underbash Guard

 ### OneUp Says ###

If you're not looking for chain retention or your bike has an integrated chain guide, you can still add some bash protection with the OneUp ISCG05 Underbash.

The Underbash includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T. Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). If your bike has three ISCG05 tabs, check with the frame manufacturer to ensure the lower tabs are strong enough for a bash application. Failure to do so could result in frame damage.

FEATURES

  • Install without removing your crank
  • Single tool install and adjustment
  • Boost compatible
  • Oval Compatible
  • Stainless Steel hardware
  • Includes 3 bash plates (28-30T, 32-34T, 36T)

    SPECS

    Weight:  68g 32-34T
    Capacity: 28-36T
    Chainline: 2.5mm adjustment
    Mount: ISCG05 2-Bolt ONLY
    Color: Black
    Material: 7075 aluminum, glass reinforced thermoplastic





    UNDERBASH SETUP INSTRUCTIONS

    1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
    2. Rotate backplate to desired location and torque bolts to 5Nm



    BASH REPLACEMENT INSTRUCTIONS

    1. Remove Underbash from bike
    2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
    3. Remove Bash bolts using a 5mm hex
    4. Select desired bash plate and reinstall bash bolts to 6Nm
    5. Reinstall bolt retaining clip on the rear bash plate bolt
    6. Reinstall Underbash onto bike
      $17.32

      Original: $49.50

      -65%
      Oneup Components ISCG05 Underbash Guard—

      $49.50

      $17.32

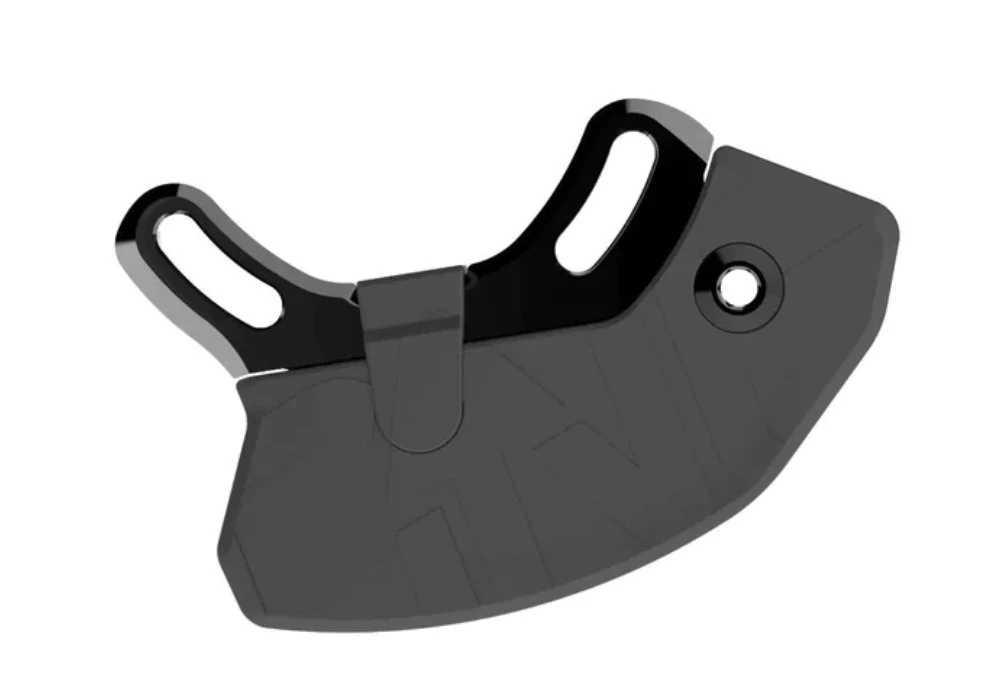

      Product image 1

      Description

       ### OneUp Says ###

      If you're not looking for chain retention or your bike has an integrated chain guide, you can still add some bash protection with the OneUp ISCG05 Underbash.

      The Underbash includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T. Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). If your bike has three ISCG05 tabs, check with the frame manufacturer to ensure the lower tabs are strong enough for a bash application. Failure to do so could result in frame damage.

      FEATURES

      • Install without removing your crank
      • Single tool install and adjustment
      • Boost compatible
      • Oval Compatible
      • Stainless Steel hardware
      • Includes 3 bash plates (28-30T, 32-34T, 36T)

        SPECS

        Weight:  68g 32-34T
        Capacity: 28-36T
        Chainline: 2.5mm adjustment
        Mount: ISCG05 2-Bolt ONLY
        Color: Black
        Material: 7075 aluminum, glass reinforced thermoplastic





        UNDERBASH SETUP INSTRUCTIONS

        1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
        2. Rotate backplate to desired location and torque bolts to 5Nm



        BASH REPLACEMENT INSTRUCTIONS

        1. Remove Underbash from bike
        2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
        3. Remove Bash bolts using a 5mm hex
        4. Select desired bash plate and reinstall bash bolts to 6Nm
        5. Reinstall bolt retaining clip on the rear bash plate bolt
        6. Reinstall Underbash onto bike
